Thread Class Reference

Thread. More...

#include <thread.h>

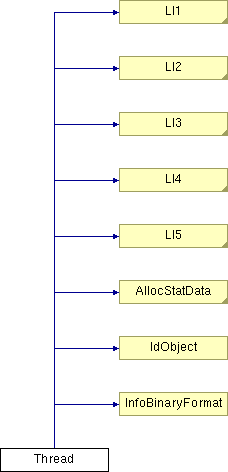

Inheritance diagram for Thread::

List of all members.

Public Methods
	Thread ()
	Default constructor.
virtual	~Thread ()
	Destructor.
JNIEnv *const &	getKey (JNIEnv *&key)
	Retrieves object's key. More...
int	operator== (JNIEnv *const &key)
	Compares object with given key. More...
virtual Buffer &	infoToBin (Buffer &b)
	Convert info to binary. More...
void	deactivate ()
	Performs deactivation.
void *	operator new (size_t sz)
	Overloaded new() operator.
void	operator delete (void *unit)
	Overloaded delete() operator.
virtual eClassIdent	getClassIdent ()
	Class identification. More...
virtual int	isActive ()
	State of object. More...
virtual int	isChanged ()
	Indication that object has changed its data. More...
virtual void	setUnchanged ()
	Set the structure is unchanged although it may not be.
Static Public Methods
int	hashKey (JNIEnv *const &key)
	Hash function. More...
Public Attributes
String	threadName
	name of thread.
GroupThread *	group
	group of thread.
Thread *	parent
	parent of thread.
List< Thread, LI3 >	children
	children of thread.
jobjectID	threadId
	thread object ID.
JNIEnv *	threadEnvId
	JVMPI ID of the thread.
int	active
	active or not.
List< AllocThreadObject, LI1 >	allocThreadObjects
	associated AllocThreadObjects.
List< AllocThreadMethod, LI1 >	allocThreadMethods
	associated AllocThreadMethods.
List< CpuThreadMethod, LI2 >	cpuThreadMethods
	associated CpuThreadMethods.
List< MonThreadMethod, LI2 >	monThreadMethods
	associated MonThreadMethods.
CpuStack	stack
	CPU stack.
JVMPI_CallTrace	callTrace
	Call trace for general temporary usage. More...
Thread *	nextSuspended
	for CPU sampling purposes.
int	hasRun
	for CPU sampling purposes.
int	monitorEnter
	For monitor profiling purposes. More...
jobjectID	monitorEnterObject
	For monitor profiling purposes. More...
unsigned long	monitorEnterTime
	For monitor profiling purposes. More...
Static Private Attributes
Allocator	_allocator
	allocator.

---

Detailed Description

Thread.

This class consists of data gained by receiving the JVMPI_EVENT_THREAD_START event. When the thread stops (JVMPI_EVENT_THREAD_END event received), data in this structure is no longer valid, so 'active' field will equal zero.

See also:

GroupThread

Author:

Marek Przeczek, Petr Luner

Definition at line 65 of file thread.h.

---

Member Function Documentation

virtual eClassIdent Thread::getClassIdent (    )  [inline, virtual]

Class identification. Returns: unique class type identifier Reimplemented from IdObject. Definition at line 232 of file thread.h.

JNIEnv* const& Thread::getKey (  JNIEnv *&    key )  [inline]

Retrieves object's key. Parameters: key  where to store the key Returns: key See also: Hash Definition at line 174 of file thread.h. Referenced by MonThreadMethod::getKey(), CpuThreadMethod::getKey(), AllocThreadObject::getKey(), and AllocThreadMethod::getKey().

int Thread::hashKey (  JNIEnv *const &    key )  [inline, static]

Hash function. Parameters: key  reference to a key Returns: hash value Definition at line 193 of file thread.h. Referenced by MonThreadTrace::hashKey(), MonThreadMethod::hashKey(), CpuThreadTrace::hashKey(), CpuThreadMethod::hashKey(), AllocThreadTrace::hashKey(), AllocThreadObjectTrace::hashKey(), AllocThreadObjectMethod::hashKey(), AllocThreadObject::hashKey(), and AllocThreadMethod::hashKey().

Buffer & Thread::infoToBin (  Buffer &    b )  [virtual]

Convert info to binary. This method converts information data to binary format in which it is sent thru communication interface to client. Parameters: b  buffer where to append data Returns: reference to same Buffer object as argument 'b' Reimplemented from InfoBinaryFormat. Definition at line 47 of file thread.cpp.

virtual int Thread::isActive (    )  [inline, virtual]

State of object. Once an object is unactive, it remains unactive forever. Returns: 0 (not active); 1 (active) Reimplemented from IdObject. Definition at line 240 of file thread.h. Referenced by MonThreadMethod::isActive(), CpuThreadMethod::isActive(), AllocThreadObject::isActive(), and AllocThreadMethod::isActive().

virtual int Thread::isChanged (    )  [inline, virtual]

Indication that object has changed its data. Returns: 0 (no change); 1 (data changed) Reimplemented from IdObject. Definition at line 247 of file thread.h.

int Thread::operator== (  JNIEnv *const &    key )  [inline]

Compares object with given key. Parameters: key  key Returns: 1 (true); 0 (false) See also: Hash Definition at line 185 of file thread.h.

---

Member Data Documentation

JVMPI_CallTrace Thread::callTrace

Call trace for general temporary usage. There are MAX_TRACE frames. Definition at line 114 of file thread.h. Referenced by Sampling::doOneSample().

int Thread::monitorEnter

For monitor profiling purposes. Indicates whether JVMPI_EVENT_MONITOR_CONTENDED_ENTER event occured for this thread. The flag is cleared in JVMPI_EVENT_MONITOR_CONTENDED_ENTERED event. Definition at line 127 of file thread.h. Referenced by Prof::event_monitorContendedEnter(), and Prof::event_monitorContendedEntered().

jobjectID Thread::monitorEnterObject

For monitor profiling purposes. Holds the object id of the last JVMPI_EVENT_MONITOR_CONTENDED_ENTER event. Definition at line 133 of file thread.h. Referenced by Prof::event_monitorContendedEnter(), and Prof::event_monitorContendedEntered().

unsigned long Thread::monitorEnterTime

For monitor profiling purposes. Holds the time of the last JVMPI_EVENT_MONITOR_CONTENDED_ENTER event. Definition at line 139 of file thread.h. Referenced by Prof::event_monitorContendedEnter(), and Prof::event_monitorContendedEntered().

---

The documentation for this class was generated from the following files:

• thread.h
• thread.cpp

---
